Pneumatic tie rod cylinders are essential hydraulic components used in various industries for linear motion applications. These air cylinders consist of a cylinder barrel, piston rod, and tie rods that secure the cylinder's ends. They play a vital role in converting fluid power into mechanical force, enabling precise and reliable movement in machinery and equipment. Tie rod cylinders find widespread use in manufacturing, construction, and automotive sectors, contributing to efficient operations across diverse applications.

Key features and benefits of Tie Rod Cylinders

Key Features

The piston diameters range of 32mm to 125mm allows for a broad spectrum of applications, catering to different force requirements and space constraints. Smaller diameters are ideal for applications with limited space or lower force requirements, while larger diameters are suitable for applications needing higher force output.

Key Features

The pneumatic cushioning in these cylinders is designed to absorb energy at the end of the stroke, reducing impact and noise. This advanced feature extends the life of the cylinder by minimising wear and tear, and is particularly beneficial in high-speed applications where sudden stops could cause damage.

Key Features

Alongside pneumatic cushioning, the additional elastic cushioning provides extra protection against impact at the end of the stroke. This dual cushioning system ensures smoother operation and further reduces potential damage to the cylinder and the machinery it's integrated into.

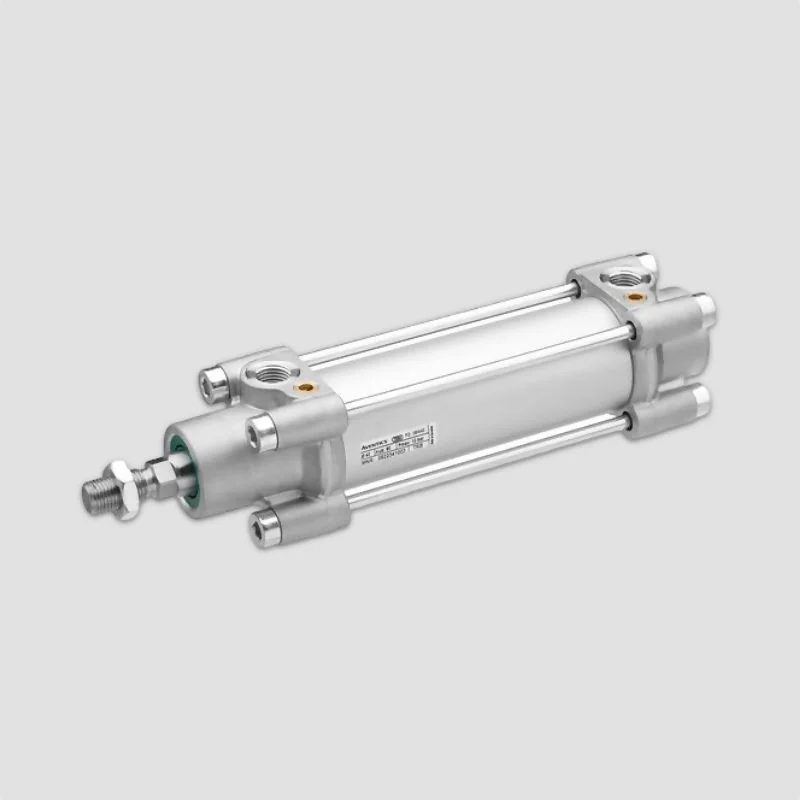

The AVENTICS™ Series TRB Tie rod cylinders offer a versatile solution with piston diameters ranging from 32 mm to 125 mm. These cylinders feature advanced pneumatic cushioning and additional elastic cushioning for enhanced performance. They also come with a wide range of scraper modules, and thanks to the modular system, you can easily change the scraper on the cylinder, reducing service intervals significantly. With a plethora of variants and accessories accessible in the configurator, these cylinders provide flexibility and customization options to suit your specific needs.Upgrade your pneumatic systems with AVENTICS™ Series TRB Tie rod cylinders for optimal performance and efficiency.

Standards:	ISO 15552
Working Pressure Range:	1.5 - 10 Bar
Temperature Range:	-20°C to 80°C
Maximum Particle Size:	50 µm
Piston Force Pressure:	6.3 Bar
Materials:	Aluminium (Anodised), Stainless Steel (Galvanised), Die-cast Aluminum, Polyurethane

Find Out More

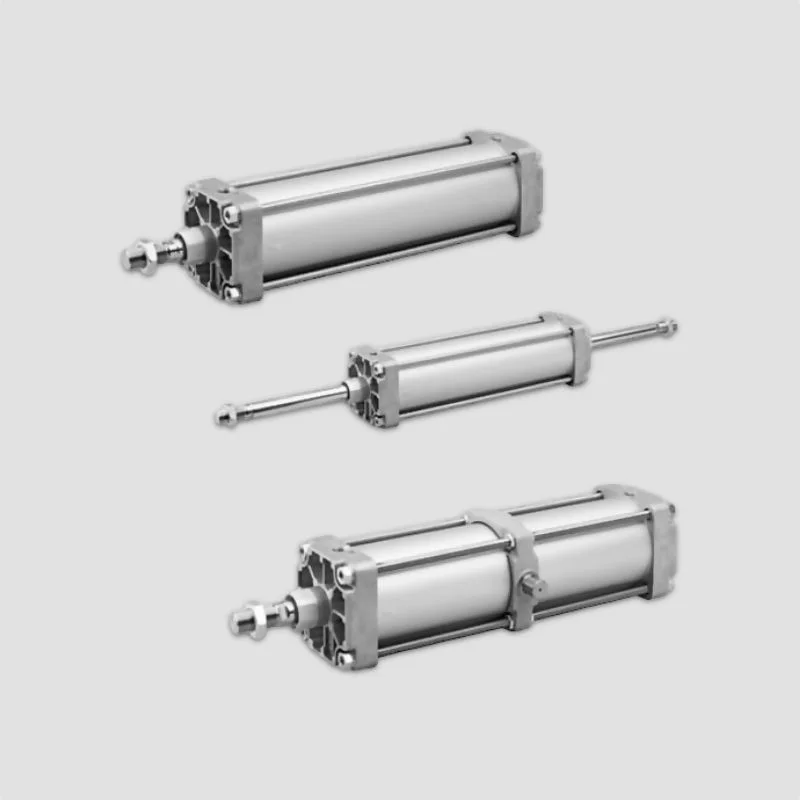

The AVENTICS™ Series ITS Tie rod cylinders offer impressive capabilities, capable of moving up to five tons with ease. These ISO 15552 cylinders cover a wide stroke range, from just a few centimeters to a substantial 2700 mm, making them suitable for a variety of applications. Their modular sealing system allows for customised solutions, ensuring efficient operation while minimising maintenance. Designed with materials optimisation in mind, these cylinders are built to last.

Standards:	ISO 15552
Working Pressure Range:	2 - 10 Bar
Temperature Range:	-20°C to 80°C
Maximum Particle Size:	50 µm
Piston Force Pressure:	6.3 Bar
Materials:	Aluminium (Anodised), Stainless Steel (Galvanised), & Acrylonitrile Butadiene Rubber

Find Out More

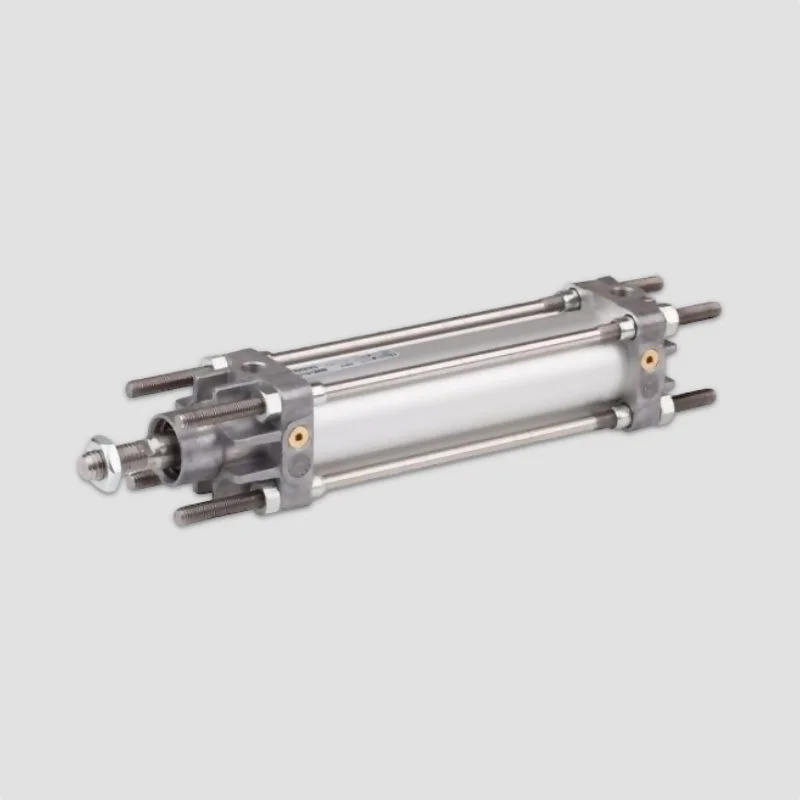

The AVENTICS™ Series C12P Tie rod cylinders are designed to meet the CNOMO NFE 49-001 standards, ensuring top-notch quality and performance. With diameters ranging from 25mm to 200mm, these cylinders are versatile and can handle a maximum stroke of up to 90.551 inches. Their robust construction guarantees durability and reliability, making them suitable for a variety of industrial applications. Additionally, these cylinders offer optional features like a through piston rod and heat resistance, giving you the flexibility to tailor them to your specific needs. Trust in the AVENTICS™ Series C12P Tie rod cylinders for dependable and high-quality performance.

Standards:	CNOMO / NFE 49-001
Working Pressure Range:	2 - 10 Bar
Temperature Range:	-20°C to 80°C
Maximum Particle Size:	50 µm
Piston Force Pressure:	6.3 Bar
Materials:	Aluminium (Anodised), Stainless Steel, Polyurethane, & Steel (Galvanised)

Find Out More

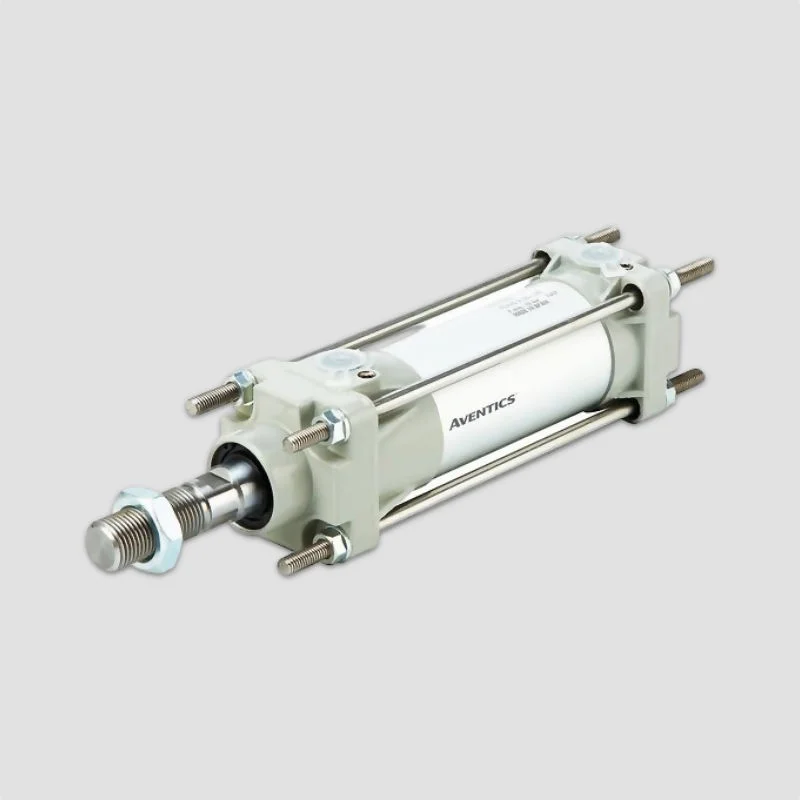

The AVENTICS™ Series 437 Tie-Rod Cylinders offer a versatile solution with a wide selection of mountings and sensors, catering to various industrial needs. These cylinders come prepared for magnetic position detectors, enhancing their precision and control. They are suitable for use with both lubricated and unlubricated air, ensuring compatibility with different operational setups. With an ambient temperature range spanning from -10°C to 70°C, these cylinders can perform reliably in diverse environmental conditions, making them a dependable choice for a range of applications.

Standards:	CNOMO 06-07-02
Maximum Operating Pressure:	10 Bar
Temperature Range:	-10°C to 70°C
Optimal Max Speed:	1m/s
Fluid:	Air & Inert Gas
Materials:	Aluminium (Anodised), Stainless Steel, Nitrile, Chrome Plated Steel, & Polyurethane

Find Out More

Introducing the AVENTICS™ Series 167 Tie-rod cylinder, available in diameters ranging from Ø 25 mm to 100 mm and boasting a maximum stroke of 1500 mm. This versatile cylinder is designed for high stroke frequencies and excels in pulley applications. Its user-friendly design features a convenient plug-in with a tube nut or external thread option, making installation a breeze. Experience reliability and efficiency with AVENTICS™ Series 167 Tie-rod cylinder, your solution for demanding industrial needs.

Standards:	ISO 6431
Working Pressure Range:	2 - 10 Bar
Temperature Range:	-20°C to 75°C
Maximum Particle Size:	50 µm
Piston Force Pressure:	6 Bar
Materials:	Aluminium (Anodised), Stainless Steel (Chrome Plated), & Acrylonitrile Butadiene Rubber

Find Out More

We provide comprehensive technical drawing services for pneumatic cylinders, with skilled artists ready to create the drawings you require. Simply let us know your specifications and needs.

Manuals, Datasheets and Certificates

In this guide, we delve into the world of tie rod pneumatic cylinders, essential components in industrial automation. Click the following link to learn more today.

Learn More

The key features of pneumatic tie rod cylinders include available piston diameters ranging from 32 mm to 125 mm, advanced pneumatic cushioning, additional elastic cushioning, a wide range of scraper modules, and the ability to change the scraper on the cylinder to decrease service intervals. Additionally, there is a wide range of variants and accessories available in the configurator.

Pneumatic tie rod cylinders are frequently implemented in industries where heavy-duty cylinders are required. These industries include wood and aluminium processing, steel manufacturing, automotive production, heavy-duty machinery, and mining, among others.

The ISO 15552 standard is a set of international standards that define the dimensions, mounting, and performance requirements for pneumatic cylinders. Pneumatic tie rod cylinders adhere to this standard.

Advanced pneumatic cushioning in pneumatic tie rod cylinders helps to reduce the impact forces at the end of each stroke. This results in smoother and quieter cylinder operation while extending the overall lifespan of the cylinder.

A: Additional elastic cushioning in these cylinders provides an extra level of shock absorption. It further minimises the effects of sudden stops or rapid movements, ensuring a more controlled and precise operation in various applications.

The modular system allows you to change the scraper on the cylinder at any time, which significantly decreases service intervals. This means less downtime for maintenance and increased overall efficiency in your operations.

Yes, these cylinders come in a range of piston diameters from 32 mm to 125 mm. This versatility allows you to choose the appropriate size for your specific application requirements.

Scraper modules are used to prevent contaminants and debris from entering the cylinder, ensuring smooth and reliable operation. They help maintain the integrity of the cylinder's internal components.

You can access the configurator to explore the wide range of variants and accessories for these cylinders through the official manufacturer's website or by contacting an authorised distributor or dealer.

In the steel industry, these cylinders are often used in applications such as steel rolling mills, metal forming presses, and steel handling equipment to provide reliable and precise movement and control.

In mining applications, these cylinders are preferred due to their durability and ability to withstand harsh environments. They are often used in heavy machinery, conveyor systems, and equipment for mining operations to ensure reliable and efficient performance.
