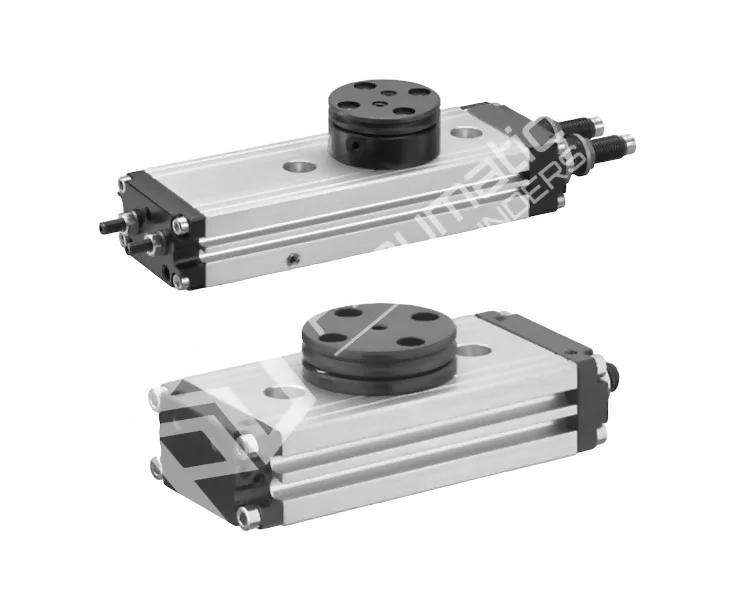

Pneumatic Rotary Type Cylinders RCM Series

Explore the dynamic capabilities of RCM Rotary Type Cylinders, featuring a versatile angle of rotation up to 90-180°, with diameters ranging from Ø6 to 25mm. Equipped with a magnetic piston and a double piston with rack, these cylinders are Easy2Combine capable, offering flexibility in integration. The elastic cushioning ensures smooth operations, while the working pressure varies between 2 to 8 bar. Operating efficiently in ambient temperatures from 5 to 60°C and with compressed air as the medium, these cylinders exhibit resilience with an elastic cushioning system. Theoretical torque at 6 bar provides an insight into their performance, making RCM Rotary Type Cylinders a reliable choice for diverse applications.
Shop Help Me

Key Features

Key features and benefits of the RCM Rotary Type Cylinders.
1

Key Features

Achieve precision with an adjustable angle of rotation up to 90-180°, allowing these cylinders to adapt to various tasks.
2

Key Features

Experience smooth and controlled movements, thanks to the elastic cushioning system, enhancing the overall performance.
3

Key Features

Enjoy flexibility in system integration, as these cylinders are designed to be Easy2Combine capable, offering adaptability in diverse setups.

Range of Cylinders

Need More Dimensions?

We provide comprehensive technical drawing services for pneumatic cylinders, with skilled artists ready to create the drawings you require. Simply let us know your specifications and needs.
Contact Us

Cylinder Standards

Ambient Temperature Range: 5°C to 60°C
Working Pressure Range: 2 - 8 Bar
Maximum Particle: 5 µm
Medium: Compressed Air
Bore Diameter: Ø 6-25 mm

FAQs

RCM Rotary Type Cylinders are mechanical devices used to convert linear motion into rotary motion. They operate by transmitting force through a piston that rotates a shaft, allowing for controlled rotation.

RCM Rotary Type Cylinders are commonly used in industrial machinery, automation systems, and robotics for tasks such as indexing, clamping, and conveying.

RCM Rotary Type Cylinders offer high precision, reliability, and versatility in converting linear motion to rotary motion. They are compact and suitable for various industrial applications.

Yes, RCM Rotary Type Cylinders come in various configurations, including single and double-acting models, as well as options for different shaft sizes and rotation angles.

Generally, RCM Rotary Type Cylinders are designed for minimal maintenance. Routine inspections and lubrication can extend their lifespan and ensure optimal performance.
