Standard Cylinders

Standard Cylinders, commonly used in heating systems, are essential components for hot water storage and distribution. They play a pivotal role in maintaining consistent water temperature, ensuring efficient heating operations. These cylinders come in various sizes and designs to suit diverse heating requirements, making them indispensable for both residential and commercial applications.

Key Features

Key features and benefits of Standard Cylinders
1

Key Features

Standard cylinders are known for their simple design, which typically includes a cylinder barrel, a piston with a piston rod, and end caps. This simplicity contributes to their reliability and ease of maintenance.
2

Key Features

The anodised surfaces of these cylinders are not only durable and resistant to corrosion but also easy to clean. This feature is particularly beneficial in environments where hygiene is a priority, such as in the food processing or pharmaceutical industries.
3

Key Features

To further enhance their suitability for hygienic applications, these cylinders come with hygienic protective caps for unused mounting holes. These caps prevent the accumulation of dirt and bacteria, thereby maintaining cleanliness and hygiene standards.

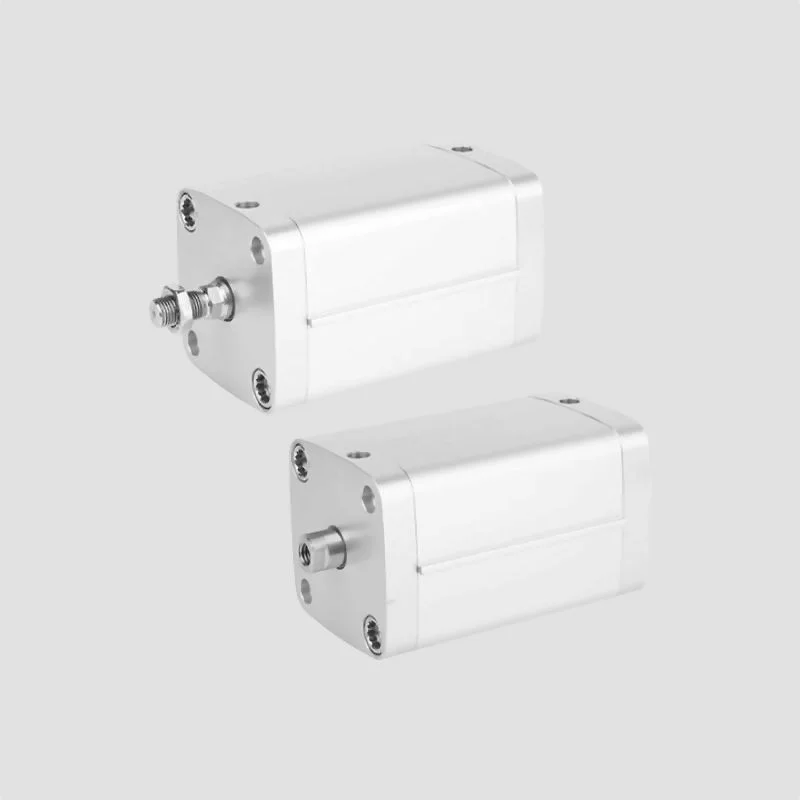

CCL-IC Series

The AVENTICS™ Series CCL-IC Standard cylinders boast a compact and clean design, making them a top choice for various applications. With nine available sizes, ranging from 16 mm to 100 mm piston diameters, these cylinders offer versatility to meet your specific needs. Their anodized surfaces are easy to clean, ensuring efficiency in maintenance. Moreover, these cylinders are NSF-H1 approved for food applications, thanks to their scrapers and lubricants. For added hygiene, protective caps are provided for unused mounting holes.

Standards: ISO 21287
Working Pressure Range: 1 - 10 Bar
Temperature Range: -20°C to 80°C
Maximum Particle Size: 50 µm
Piston Force Pressure: 6.3 Bar
Materials: Aluminium (Anodised), Stainless Steel, & Polyurethane
Find Out More

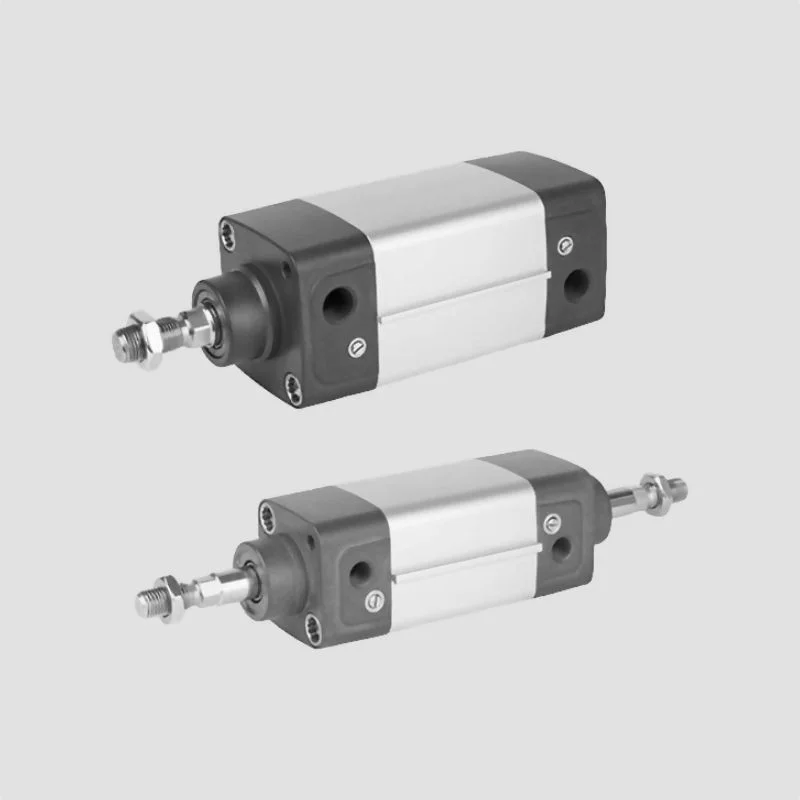

CCL-IS Series

The AVENTICS™ Series CCL-IS Standard cylinders offer hassle-free maintenance with their easily cleanable anodised surfaces. Perfect for food applications, these cylinders come with NSF-H1 approved scrapers and lubricants. Hygiene is a top priority, with protective caps for unused mounting holes. With a range of eight sizes, covering piston diameters from 25 mm to 125 mm, these cylinders fit various needs. You can also choose between elastic or pneumatic cushioning. Plus, the option to configure air connections on the rear cover enhances flexibility in designing your system's tubing concept.

Standards: ISO 15552
Working Pressure Range: 1.5 - 10 Bar
Temperature Range: -20°C to 80°C
Maximum Particle Size: 50 µm
Piston Force Pressure: 6.3 Bar
Materials: Aluminium (Anodised), Stainless Steel, & Polyester
Find Out More

Need More Dimensions?

We provide comprehensive technical drawing services for pneumatic cylinders, with skilled artists ready to create the drawings you require. Simply let us know your specifications and needs.
Contact Us

Manuals, Datasheets and Certificates

  • PDF
Manuals, Datasheets and Certificates

Instruction Manual
  • PDF
Manuals, Datasheets and Certificates

Declaration of Conformity
  • PDF
Manuals, Datasheets and Certificates

Cylinder Overview
  • PDF
Manuals, Datasheets and Certificates

Machine Automation
  • PDF
Manuals, Datasheets and Certificates

Cylinder Same Day Dispatch

Pneumatic Standard Cylinders: The Core of Modern Automation

This article explores the world of Pneumatic Standard Cylinders, a crucial component in industrial automation and manufacturing. Click the button below to begin learning today.
Learn More

Frequently Asked Questions

The key features of AVENTICS pneumatic standard cylinders include a compact clean design, availability in nine sizes covering piston diameters from 16 mm to 100 mm, easy-to-clean anodized surfaces, approval of scrapers and lubricants (NSF-H1) for food applications, hygienic protective caps for unused mounting holes, and a universal mounting concept for easy assembly without the need for additional mounting elements.

AVENTICS pneumatic standard cylinders can be used in a wide range of applications due to their compact and clean design. They are particularly well-suited for use in the food and beverage industry, thanks to their materials and lubricants approved for such demanding requirements.

AVENTICS pneumatic standard cylinders are constructed using materials such as anodized aluminium and stainless steel, which contribute to their durability and suitability for various applications.

Yes, AVENTICS pneumatic standard cylinders feature easy-to-clean anodized surfaces, making maintenance and cleaning straightforward.

AVENTICS pneumatic standard cylinders are available in nine different sizes, covering piston diameters ranging from 16 mm to 100 mm.

Yes, AVENTICS pneumatic standard cylinders are ideal for use in the food and beverage industry, as they are designed with materials and lubricants (NSF-H1) approved for such applications.

The hygienic protective caps on AVENTICS pneumatic standard cylinders are designed to cover unused mounting holes, ensuring hygiene and cleanliness in applications, particularly in food-related industries.

No, AVENTICS pneumatic standard cylinders feature a universal mounting concept that allows for easy assembly without the need for additional mounting elements.

AVENTICS pneumatic standard cylinders can benefit a wide range of industries due to their versatile design. However, they are especially suitable for applications in the food and beverage industry where hygiene and durability are crucial.

Yes, AVENTICS pneumatic standard cylinders are built to withstand demanding requirements, and their materials and construction make them suitable for use in industrial applications.

Yes, the scrapers and lubricants used in AVENTICS pneumatic standard cylinders are approved for food applications and meet the NSF-H1 standards for food-grade lubricants.
