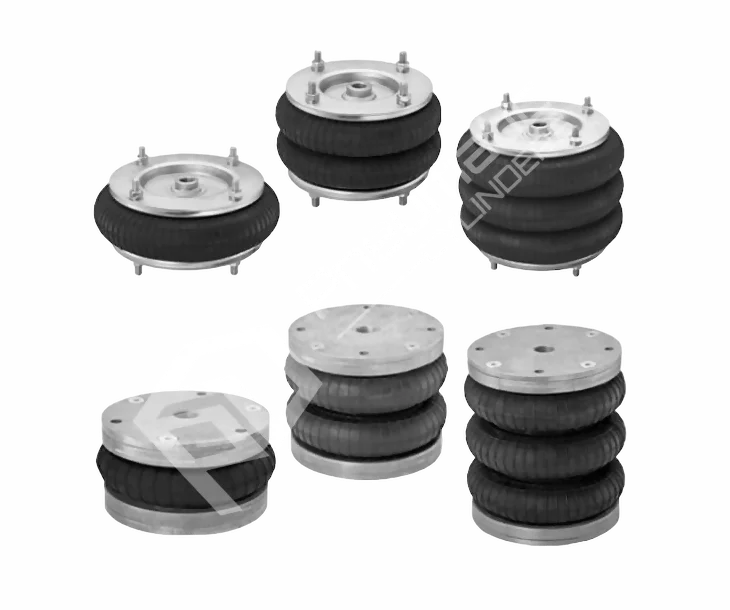

Pneumatic Bellow Type Cylinders BCC Series

Introducing the BCC Bellow Type Cylinders – a single-stroke marvel designed for optimal performance. This version comes equipped with a bellow actuator, a mounting ring, and a cover, operating on a single-acting, retracted without pressure functional principle. With a working pressure range from 0 to 8 bar, these cylinders efficiently utilise compressed air as their medium. They boast a permissible tilt angle of up to 20° and require a pressure of 6 bar to determine forces. The cylinders accommodate ambient temperatures within specified limits, detailed in the accompanying table, and their weight varies as per the provided table. Ideal for diverse applications, these cylinders deliver reliable results, ensuring precision and functionality.
Shop Help Me

Key Features

Key features and benefits of BCC Bellow Type Cylinders.
1

Key Features

With a stroke ranging from 15 to 125 mm, these cylinders cater to a wide array of applications, providing flexibility and adaptability.
2

Key Features

The single-acting functional principle ensures optimal retraction without the need for additional pressure, streamlining operation and enhancing overall efficiency.
3

Key Features

Crafted for durability and stability, these cylinders feature a robust design that can withstand varying working pressures, making them suitable for demanding industrial environments.

Range of Cylinders

Need More Dimensions?

We provide comprehensive technical drawing services for pneumatic cylinders, with skilled artists ready to create the drawings you require. Simply let us know your specifications and needs.
Contact Us

Cylinder Standards

Functional Principle: Single-acting, retracted without pressure
Ambient Temperature Range: -30°C to 90°C
Working Pressure Range: 0 - 8 Bar
Medium: Compressed Air
Stroke Range: 15 - 125

FAQs

BCC Bellow Type Cylinders are a type of hydraulic or pneumatic cylinder that uses bellows to provide motion or force in various industrial applications.

These cylinders work by using the expansion and contraction of bellows to generate linear or rotational motion, depending on their design and application.

BCC Bellow Type Cylinders are commonly used in industries such as manufacturing, automotive, aerospace, and pharmaceuticals for precision positioning and actuation.

BCC Bellow Type Cylinders offer advantages like high precision, long life, resistance to contamination, and the ability to handle high loads with minimal friction.

Yes, BCC Bellow Type Cylinders come in various types, including single-acting, double-acting, and rotary bellow cylinders, each suited for different applications.
