Double Piston Cylinders

Pneumatic Double Piston Cylinders, also known as twin piston actuators or dual rod cylinders, are hydraulic or pneumatic devices featuring two pistons working in tandem within a single cylinder to exert force or motion. These double acting air cylinders find applications across various industries, from manufacturing and automotive to heavy machinery, enhancing efficiency and power transmission in a wide range of mechanical systems. Double piston cylinders enable the simultaneous movement of pistons in opposite directions, providing reliable and precise control over linear and angular motion, making them integral in many industrial processes.

Key Features

Key features and benefits of Double Piston Cylinders
1

Key Features

In a double piston cylinder, there are two pistons operating within the same cylinder barrel. These pistons can either work independently of each other or be synchronised, depending on the design and the intended use.
2

Key Features

One of the primary benefits of a double piston cylinder is the potential for increased force output. Since there are two pistons, the total force exerted can be significantly higher than that of a single piston, given the same pressure.
3

Key Features

Depending on the design, double piston cylinders can be used to create balanced movements (where both pistons move the same distance) or differential movements (where one piston moves a different distance than the other).

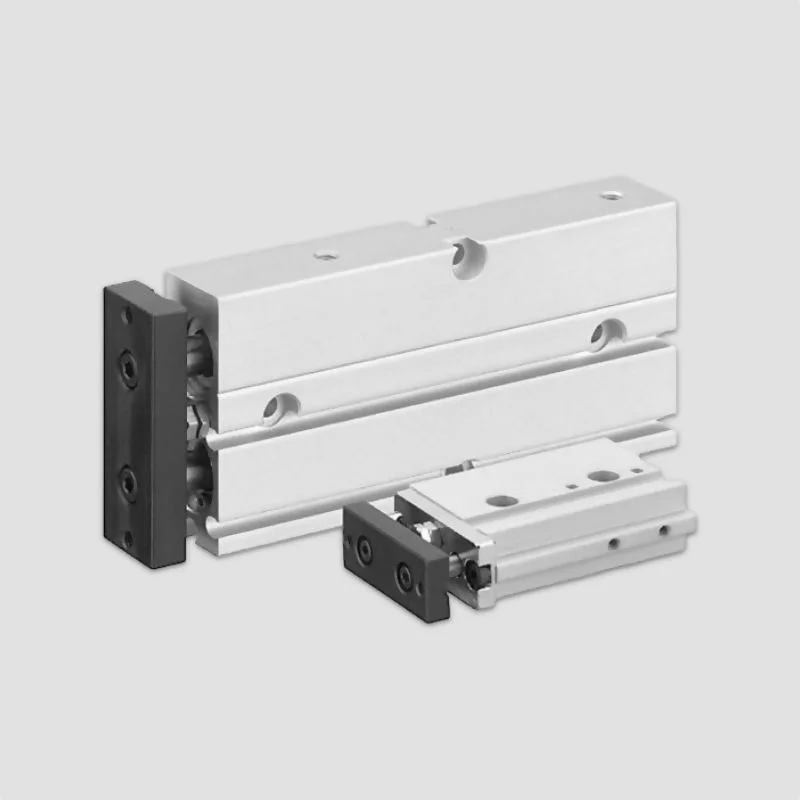

TWC Series

Introducing the AVENTICS™ Series TWC Double Piston Cylinders, available in a range of sizes from Ø 10 mm to 32 mm. These high-quality cylinders offer superior performance and durability for your industrial needs. With a variety of sizes to choose from, you can find the perfect fit for your application. Upgrade your equipment with the AVENTICS™ Series TWC Double Piston Cylinders and experience unmatched reliability and precision.

Medium: Compressed Air
Working Pressure Range: 1.5 - 7 Bar
Temperature Range: 0°C to 60°C
Maximum Particle Size: 5 µm
Piston Force Pressure: 6.3 Bar
Materials: Aluminium (Anodised), Steel, Acrylonitrile Butadiene Rubber, & Polyoxymethylene
Find Out More

Need More Dimensions?

We provide comprehensive technical drawing services for pneumatic cylinders, with skilled artists ready to create the drawings you require. Simply let us know your specifications and needs.
Contact Us

Manuals, Datasheets and Certificates

  • PDF
Manuals, Datasheets and Certificates

Instruction Manual
  • PDF
Manuals, Datasheets and Certificates

Declaration of Conformity
  • PDF
Manuals, Datasheets and Certificates

Cylinder Overview
  • PDF
Manuals, Datasheets and Certificates

Machine Automation
  • PDF
Manuals, Datasheets and Certificates

Cylinder Same Day Dispatch

Pneumatic Double Piston Cylinders: An Essential Guide for Efficiency and Precision

Explore the mechanics and applications of Double Piston Pneumatic Cylinders in this comprehensive blog. Explore and learn today through the link below.
Learn More

Frequently Asked Questions

Pneumatic Double Piston Cylinders are compact and powerful cylinders equipped with two pistons for enhanced performance.

The main advantage is their high non-rotating accuracy, ensuring precise control of movement.

Pneumatic Double Piston Cylinders are available in sizes ranging from Ø 10 mm to 32 mm.

These cylinders operate using pneumatic pressure to drive the double pistons for linear motion.

They are suitable for various applications that require precise and powerful linear motion, such as automation and manufacturing processes.

Yes, these cylinders are known for their robust construction, ensuring long-lasting performance in demanding environments.

Regular maintenance is essential to ensure optimal performance and longevity. Consult the manufacturer's guidelines for maintenance procedures.

Yes, they are designed for ease of installation, and most come with clear installation instructions.

It is advisable to check the product specifications and consult with the manufacturer to determine if they are suitable for corrosive environments.

Some accessories, such as mounting brackets and sensor options, may be available to enhance functionality. Check with the manufacturer or contact one of our experts for information on compatibility.

Industries such as automotive, manufacturing, packaging, and robotics commonly use these cylinders due to their precision and power.
