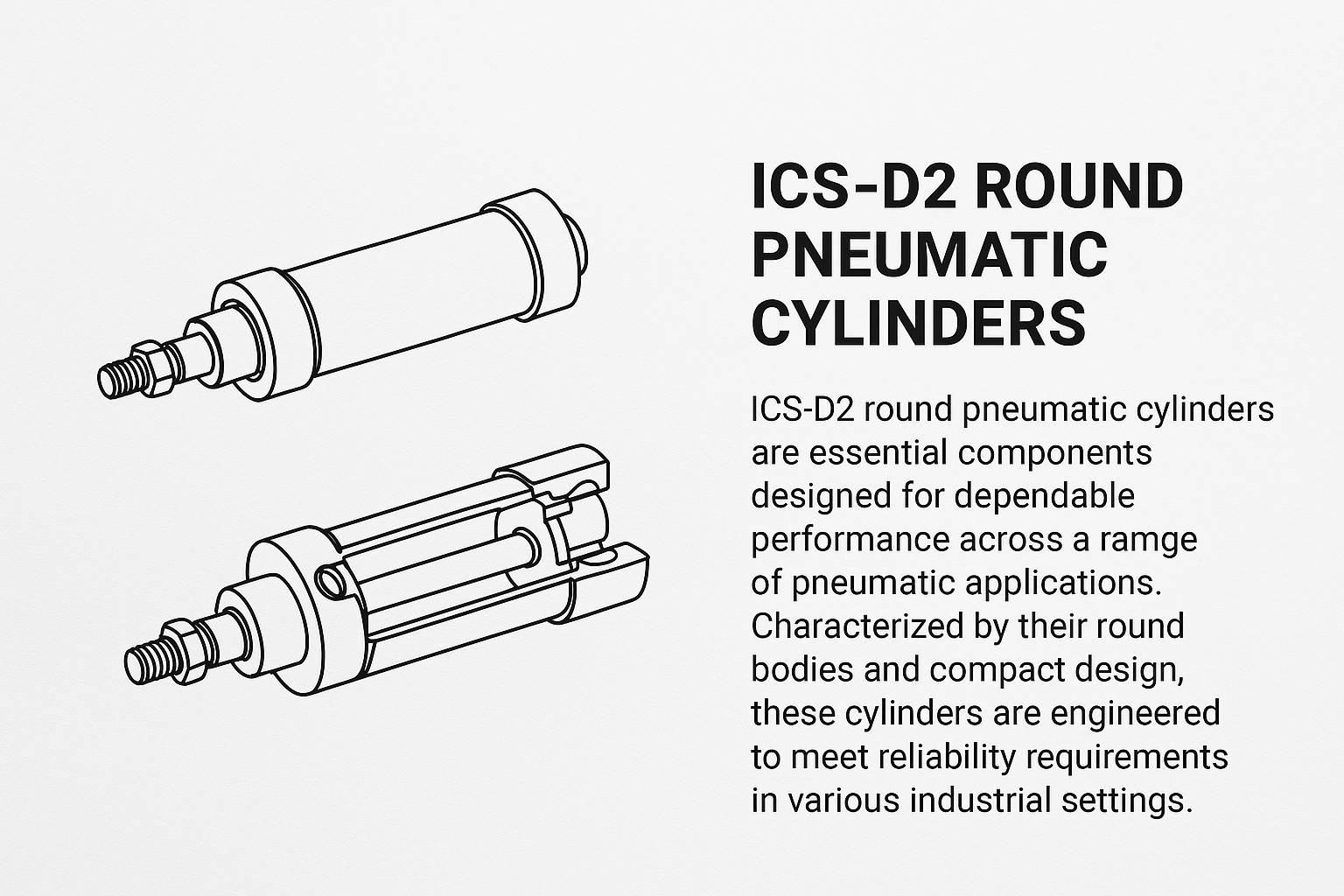

Pneumatic Round Cylinders ICS-D2 Series

The Round Pneumatic Cylinders ICS-D2 Series offers efficient and reliable pneumatic actuation solutions for a wide range of industrial applications. These cylinders, known for their durability and precision engineering, are designed to deliver consistent and powerful performance. With their sleek and compact design, they easily integrate into various systems, providing seamless motion control. Whether you need to automate processes or enhance machinery functionality, the ICS-D2 Series is a dependable choice, ensuring optimal operational efficiency in diverse industrial settings.
Shop Help Me

Key Features

Key features and benefits of the Round Pneumatic Cylinders ICS-D2 Series
1

Key Features

The Round Pneumatic Cylinders ICS-D2 Series features a hygienic design with smooth surfaces, ensuring that there are no crevices or dirt pockets where contaminants can accumulate. This design is essential for applications in clean or sterile environments, such as food processing or pharmaceutical industries.
2

Key Features

These cylinders come equipped with interlocking seals, which enhance their reliability by preventing the ingress of dirt and contaminants. This feature ensures that the cylinders maintain their performance over time and minimise the risk of malfunction due to external factors.
3

Key Features

The inclusion of cushioning screws is a valuable feature in the ICS-D2 Series. Cushioning helps control the speed and impact of the cylinder's movements, reducing wear and tear, and ensuring smooth and controlled operation. This feature not only extends the lifespan of the cylinders but also contributes to optimum cleaning conditions by minimising excessive vibrations or shocks during use.

General Information

ICS-D2 Round Pneumatic Cylinders are compact actuators specifically designed for light-duty industrial automation. Featuring a round-bodied stainless steel or aluminium construction, these cylinders offer reliable performance in tight spaces where traditional profile cylinders may not fit. They are commonly used for high-speed, repetitive motion and are well-suited for OEM machinery, conveyors, and small-scale pneumatic systems.

The ICS-D2 series is built with simplicity and efficiency in mind, offering a streamlined design that supports quick installation, smooth operation, and low maintenance. These cylinders are often interchangeable with ISO 6432-type actuators, depending on the bore and mounting configuration.

Their construction ensures lightweight handling, durability, and good resistance to corrosion, making them ideal for use in clean environments, including packaging, food processing, and lab automation.

Need More Dimensions?

We provide comprehensive technical drawing services for pneumatic cylinders, with skilled artists ready to create the drawings you require. Simply let us know your specifications and needs.
Contact Us

Cylinder Standards

Functional Principle: Double-acting
Ambient Temperature Range: -25°C to 70°C
Working Pressure Range: 1 - 10 Bar
Maximum Particle: 50 µm
Medium: Compressed Air
Standards: ISO 6431
Bore Diameter: Ø 32-100 mm

FAQs

The ICS-D2 Series Round Pneumatic Cylinder is a versatile pneumatic actuator known for its robust construction, precision engineering, and smooth operation. It features durable materials, precise positioning, and easy installation.

The ICS-D2 Series offers a range of diameter sizes, typically available from 32mm to 100mm, catering to various industrial applications.

The ICS-D2 Series features precision manufacturing and sealing technology, ensuring precise control of motion and improved accuracy in pneumatic operations.

The ICS-D2 Series enhances automation efficiency, reduces downtime, and improves overall production quality by delivering consistent and reliable pneumatic actuation.

Yes, the ICS-D2 Series can be customized with various options, such as different mounting styles, stroke lengths, and accessories, to suit specific industrial needs.

The ICS-D2 Series is widely used in industries like automotive manufacturing, packaging, food processing, and general automation due to its versatility and performance.
